Textolite Phenolic Cotton Cloth Sheet & Rod (PFCC201/HGW2082)

Ketonolic®  Phenolic cotton cloth sheet (PFCC201/HGW2082) and rod are made up of cotton saturated with phenolic resin, and are laminated under pressure and heat. This kind of thermoset composite material has been proved to be perfect for parts requiring outstanding mechanical strength and electrical properties for machinery, electric motor and electrical appliance.



Name

Ketonolic® 3025 Phenolic cotton cloth

Colors

Brown

Types

Sheets, Plates, Rods

Put the goods in the shopping cart and make an inquiry, or click the icon in the lower right corner to make an inquiry directly.

Details about Textolite Phenolic Cotton Cloth Sheet & Rod (PFCC201/HGW2082)

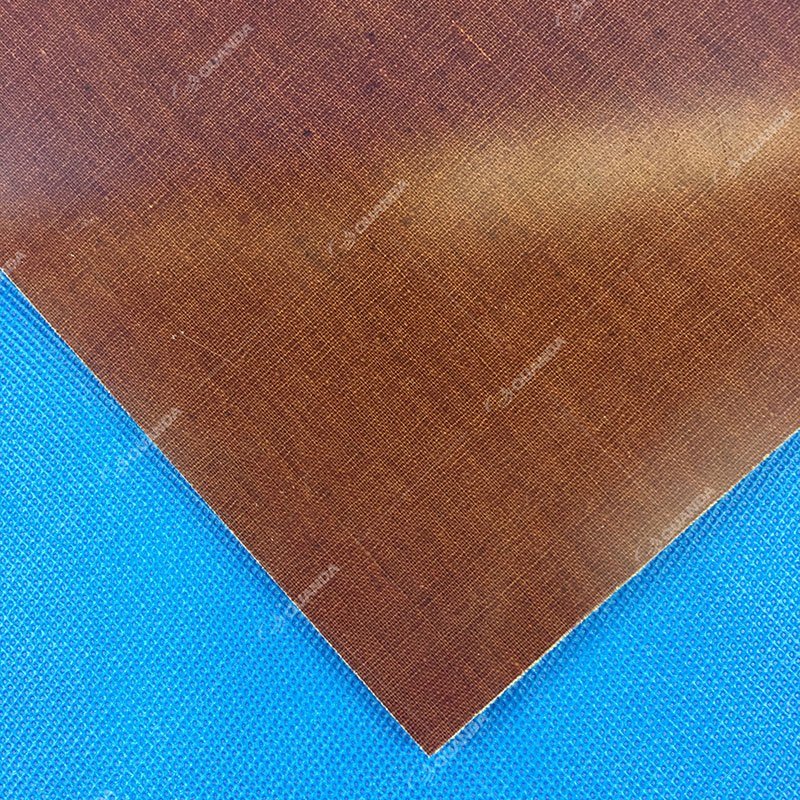

The phenolic cotton cloth sheet was for  electrical and mechanical use.
This kind of plastic laminate is supposed to have smooth surface with absolutely no bubbles, corrugates and cracks. Moreover, other defects also should be bypassed such as scratch, crease, stain or uneven color. However, a small amount of color mottles are permitted.

US NEMA standard modelIEC standard model (old product model)German DIN standard modelBritish BS standard modelJapanese JIS standard modelUS MIL-I standard
CPFCC201(3025)HGW2082F3PL-FCMFBM
CEPFCC202(3027)HGW2082.5F4PL-FCEFBG
LPFCC203(3026)HGW2083F2PL-FLIFBI
LEPFCC204(3028)HGW2083.5F5PL-FLEFBE

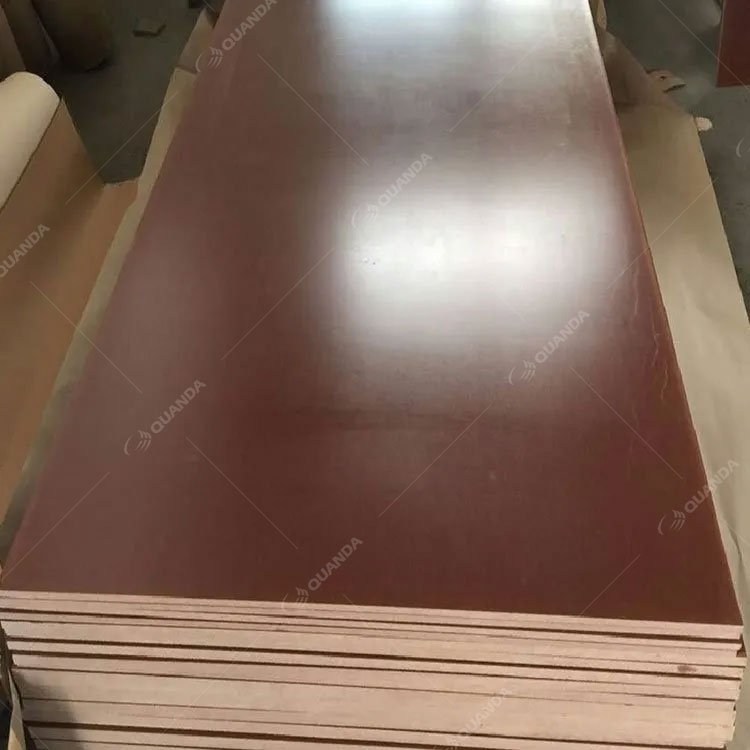

Ketonolic® Phenolic cotton cloth sheet (PFCC201/HGW2082) Size
Thickness (mm)Width/Length(mm)
0.5–2mm1020mm x 2020mm
3–60mm1020mm x 2020mm
65–180mm1020mm x 2020mm

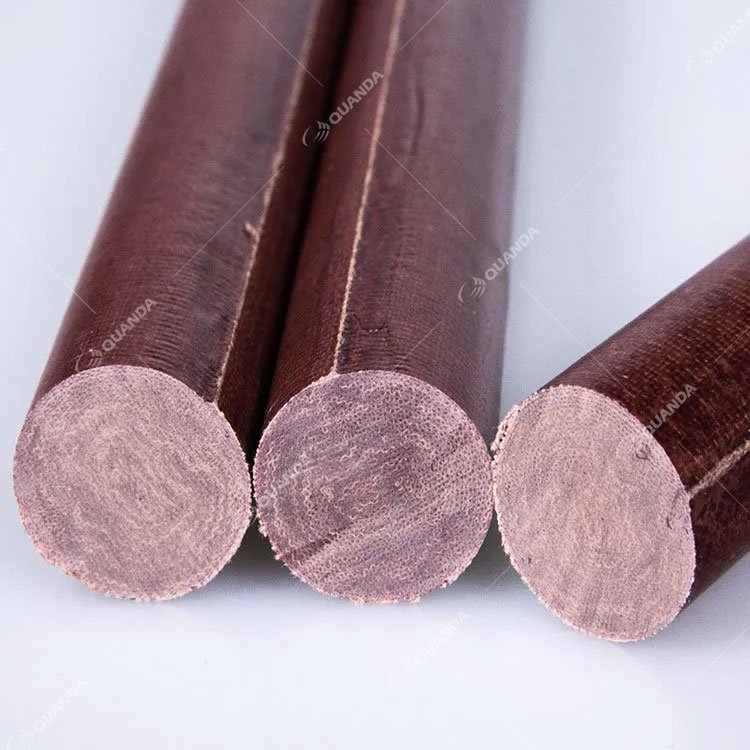

Ketonolic®  Phenolic cotton cloth rod (PFCC201/HGW2082) Size
Diameter(mm)Length(mm)
20—300mm1000mm

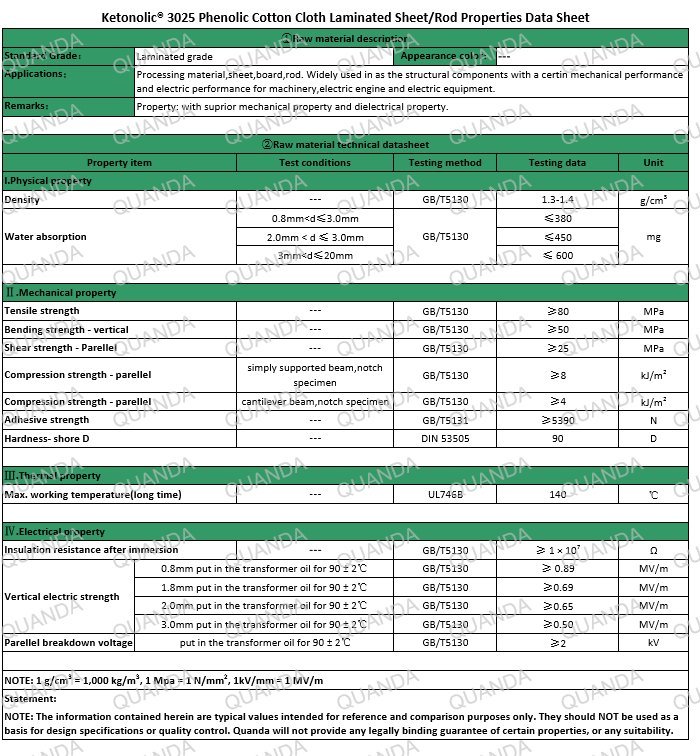

Product Strength
1. Prominent mechanical strength, oil resistance and dielectric properties
2. Excellent inertness to all kinds of solvents and acid chemical medicine



Ketonolic® 3025 phenolic cotton cloth sheet and rod(PFCC201) available in two grades:
● Ketonolic® 3025-210, the basic cloth of this grade was in 10 yarns, and dielectric breakdown strength is less than 10KV, suitable for medium and low voltage electrical panel which require lower insulation properties.

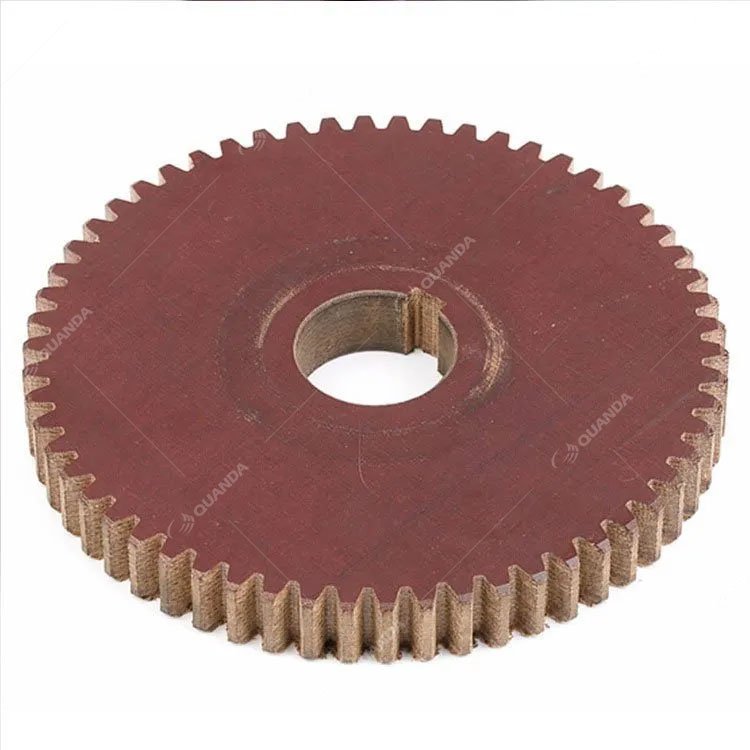

● Ketonolic® 3025-221 the basic cloth of this grade was in 21 yarns, and dielectric breakdown strength is less than 25KV, Compared to 210, 221 own the high mechanical strength, stable and precision machining size, good electrical insulation properties, suitable for high voltage electrical grid, precision gears, sliding rails which require high insulation properties. .



Remarks
1. Other sizes, colors can be customized.
2. Length, width, and thickness tolerances may vary by manufacturer
3. Certain grades available in various colors

The materials in stock with regular size are generally shipped within 2-5 business days. Can’t find the materials you need? Get a quote or consult more about Phenolic Cotton Cloth Sheet & Rod.
