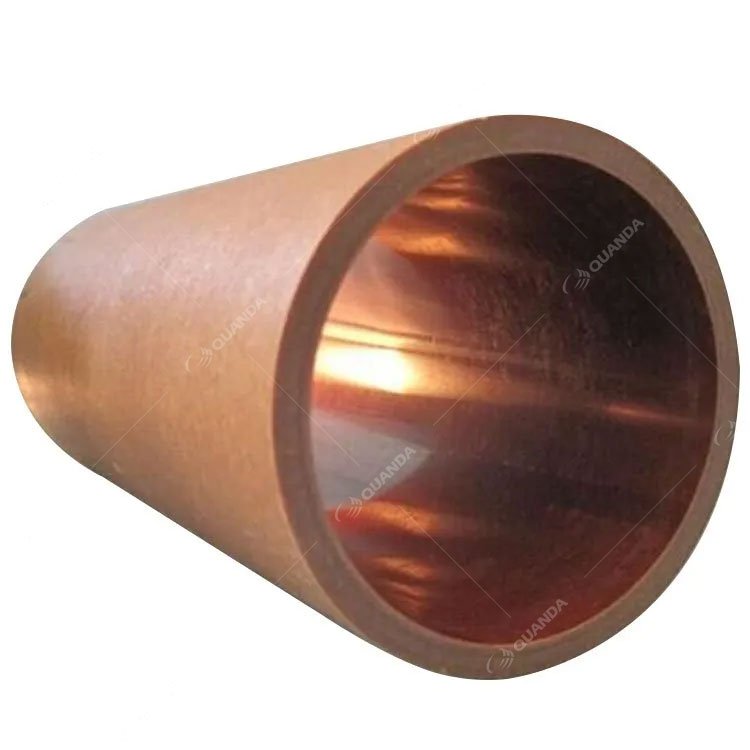

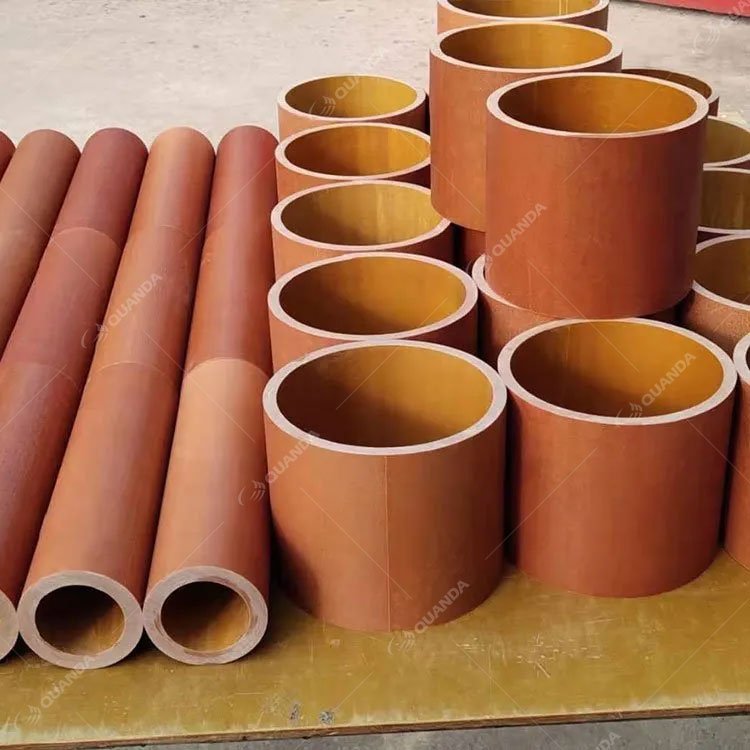

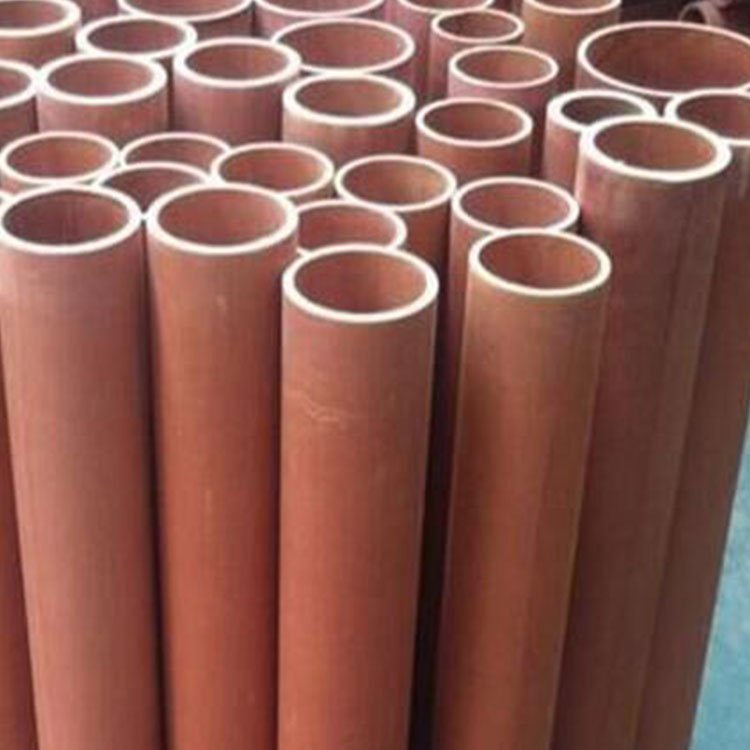

Ketonolic®Phenolic Paper Laminated Insulation Tube
Ketonolic® Phenolic Paper Laminated Tube is formed through heat pressing after electric industry alkali glass cloth dips into the phenolic resin. It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical/electrical equipment, as well as used under damp environmental conditions and transformer oil.
Name | Ketonolic® 3520 Phenolic paper |
---|---|
Colors | Dark yellow |
Types | Tubes |
Put the goods in the shopping cart and make an inquiry, or click the icon in the lower right corner to make an inquiry directly.
Details about Ketonolic®Phenolic Paper Laminated Insulation Tube
Technical requirement for surface
Appearance: The surface should be smooth. Layers, arris and bubbles are not allowed. Tiny corrugation and trimming signs are allowed. Little impurity that will not affect its voltage resistance is allowed, such as irregular color, scratch and glue marks. Tiny corrugation in the inner wall is allowed. The end shall be cut tidy. The tubes with over 13mm wall thickness are allowed to have tiny flaws on the end.
Ketonolic® Phenolic Paper Laminated Tube | ||
OD (mm) | 10mm–1400mm | |
ID(mm) | 5mm–1200mm | |
Wall thickness (mm) | 1mm–50mm | |
Length (mm) | 450mm–1600mm |
Remarks
1. Other sizes, colors can be customized.
2. Length, width, and thickness tolerances may vary by manufacturer
3. Certain grades available in various colors
The materials in stock with regular size are generally shipped within 2-5 business days. Can’t find the materials you need? Get a quote or consult more about Phenolic Paper Laminated Insulation Tube.
Characteristics
High mechanical properties, and oil resistance and certain dielectric property.
Temperature resistance: 120 ℃,Heating Resistance: Grade E
Withstand a variety of chemical solvents and acid erosion
Applications:
Chemical machine parts , general machine parts and gear ,and pads, base, baffle etc..
Generator ,transformer, fixture, inverter, motor and electric insulation component.
Worked as the insulation structural parts of the electrical equipment, work under dry conditions and transformer oil environment.
Partially processed parts
Do you need machining service?
1. Professional engineering team quote for you
2. Professional machining machine customize for you
3. Prior Sample supply you to confirm quality
