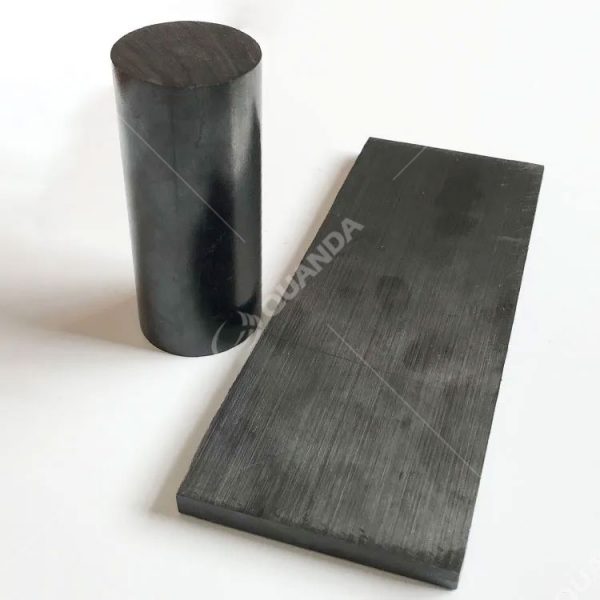

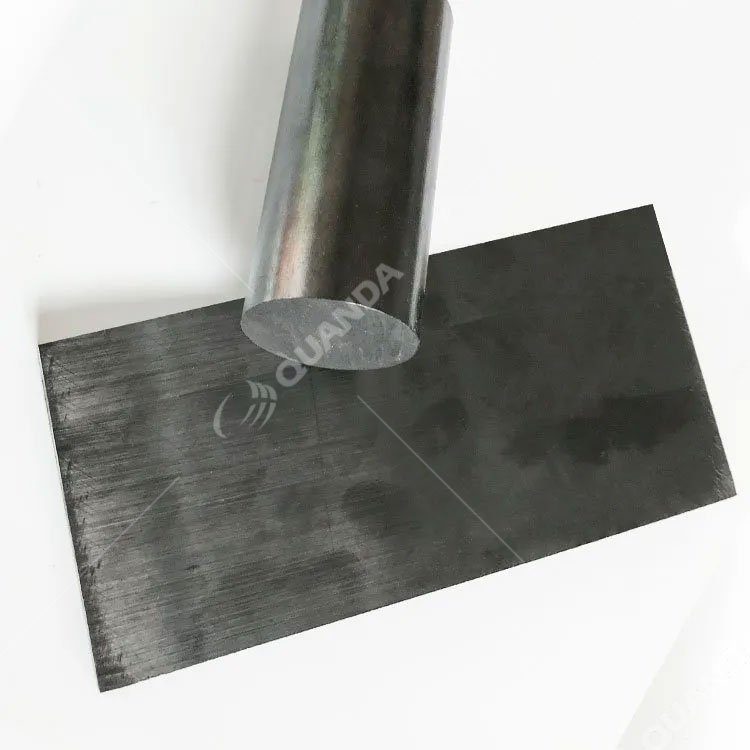

ESD PEEK Sheet and Rod

Sufoner® ESD PEEK is antistatic, nano carbon fiber reinforced PEEK which shows an extraordinary mechanical strength, toughness, flexural strength, torsional strength, ESD PEEK exhibits excellent chemical resistance, very good dielectric properties,and temperature resistance up to +250℃ -260 ℃ and a very good resistance to all kinds of radiation. The static value is 10^6—10^9 . Our ESD PEEK sheet has excellent antistatic properties, surface resistivity 106-109Ω/sq, uniform surface resistivity, the product does not precipitate low molecular substances, does not de volatile black substances, it’s clean.

Colors

Black

Types

Sheets, Rods, Plates

Antistatic value

10^6—10^9

Diameter

1.00mm, 5.00mm

Shape

Rod, Sheet, Tube

Thickness

0.05mm, 1.00mm

Put the goods in the shopping cart and make an inquiry, or click the icon in the lower right corner to make an inquiry directly.

Details about ESD PEEK Sheet and Rod

Two grades for our ESD PEEK sheet available.

Sufoner® ESD226, for the use which is static discharge was required, general testing purpose.

Sufoner® ESD366SC, an ideal microporous materials for the semiconductor industry, good for wafer transfer, and structural parts for wet process tools . Excellent electrical and mechanical properties, low water absorption, good dimensional stability, no powder drop, minimize contamination..

Properties itemTest StandardUnitIndex Value
Volume resistivityIEC 61340-2-3Ω•cm10^6-10^9
Surface resistivityIEC 61340-2-3Ω/sq10^6-10^9

Note: The antistatic property is characterized by surface resistivity (unit Ω/sq), such as concentric ring electrode method and parallel electrode method mentioned in IEC 62631-2-3, concentric ring electrode method mentioned in IEC 61340-2-3 and ANSI/ESD STM11.11. The concentric ring electrode is preferred for this product to test surface resistivity.



Sufoner® ESD/Antistatic PEEK Sheet
Thickness (mm)Width × Length (mm)
5mm-20mm610mmX1220mm
1250mmx1000mm
TypeDiameter(mm) Length (mm)

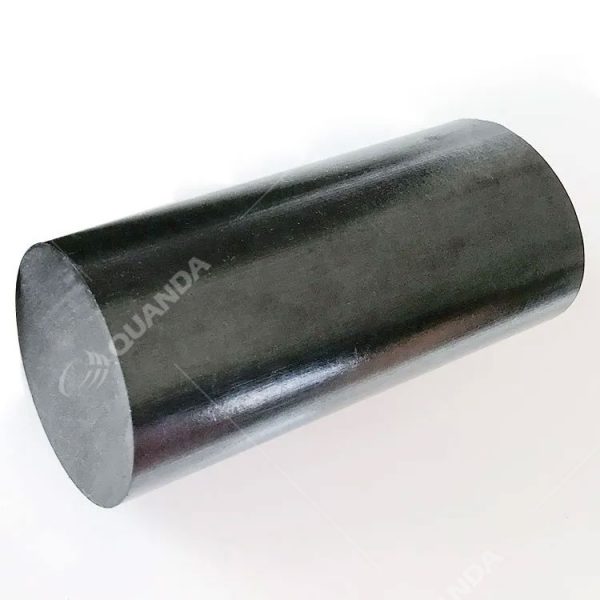

ESD PEEK Rod10mm to 80mm1000mm
