Qunsail® POM Sheet & Rod

Name: Qunsail® POM (Polyoxymethylene, Polyacetal, Delrin)
Colors include: Natural (white), Black, other colors
Types: Rods, Sheets, Plates, Tubes, Profiles

Good mechanical properties and rigidity, and close to the metal material. It’s an ideal replacement material of copper, cast zinc, steel, aluminum and other metal materials. Excellent fatigue resistance and creep resistance. Good abrasion resistance, self-lubricated and friction. High thermal stability, good chemical stability and excellent electrical insulation. And it can be used in temperatures ranging from -50℃ to +110℃.

Put the goods in the shopping cart and make an inquiry, or click the icon in the lower right corner to make an inquiry directly.

Details about Qunsail® POM Sheet & Rod

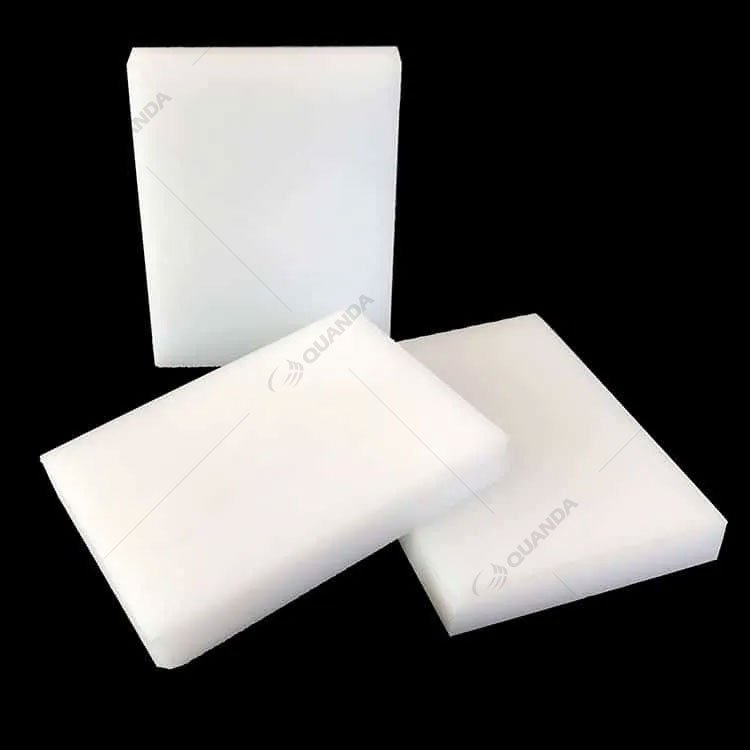

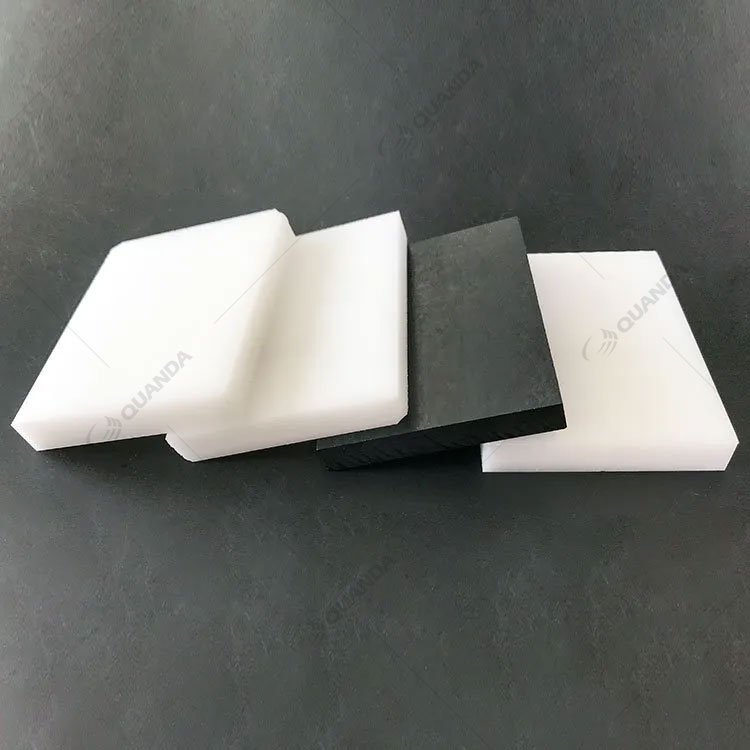

Qunsail® POM Acetal sheet
Thickness (mm)Width × Length (mm)
0.3–1.5mm(in roll)W:700mm,any length
2–3mm700mm x 1220mm
610mm x 1220mm
5–6mm610mm x 1220mm
1000mmx 2000mm
8–80mm610mm x 1220mm
610mmx3000mm
1000mmx 2000mm
1220mm x 2440mm
90–160mm610mm x 1220mm
1000mm x 1200mm

Qunsail® POM Acetal rod
Diameter (mm) Length (mm)
2mm–5mm(in roll)Any length
6mm-100mm1000mm,3000mm
110mm–250mm1000mm



Note.Remarks
1. Other sizes, colors can be customized.
2. Length, width, diameter and thickness tolerances may vary by manufacturer.
3. Certain grades available in various colors.

Grades include:

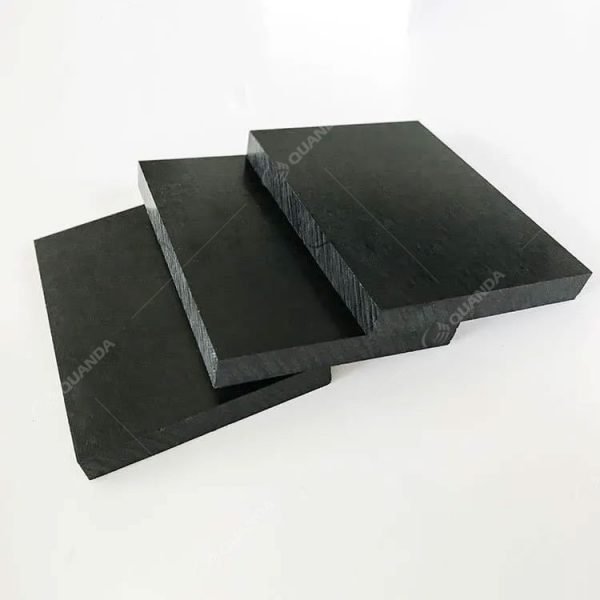

POM(ESD), black
POM with carbon fiber to reach electrical conductivity
Volume resistivity: 10^3—10^5
Surface resistivity: 10^3—10^5

POM(Antistatic), ivory
Volume resistivity: 10^6—10^9
Surface resistivity: 10^6—10^9
POM+ Carbon Fiber, black

Qunsail® POM acetal materials which usually made available in five grades

Qunsail® POM903C , general purpose copolymer grade This grade own better Hydrolysis resistance, alkali resistance, thermal oxidative degradation than homopolymer acetal, suitable for precision machined parts.

Qunsail® POM560C, copolymer POM acetal reinforced grade Compared to POM903C, the high viscosity of this grade increased the compactness, stiffness and strength, suitable for precision parts in which air tightness, sealing are important.

Qunsail® POM530YS, Homopolymer medical grade This grade is porosity-free grade and which is selected through a special resin material, the component of the raw materials comply with the applicable regulations of the European Union (Directive 2002/72 / EC, as amended) and the provisions of the United States of America (FDA) for plastic materials and articles in food contact and ISO 10993-1 standards on material biocompatibility testing requirements.

Qunsail®POM502H, Homopolymer Compared to copolymer, this grade own better mechanical strength, hardness and creep resistance properties, and lower thermal expansion coefficient and better wear resistance

Qunsail® POM503CF This is a blend of the Hostaform® C, which is mixed by PTFE resin and Hostaform acetal copolymer resin. POM503CF own same strength of POM903C. Compared to pure polyacetal, POM503CF is more softer, and own lower stiffness and smoother. Compared to POM903C and POM502H, Qunsail® POM503CF provides excellent lubricating properties. The bearing was processed by Qunsail® POM503CF has a long life and low friction, no stick-slip characteristics.
