Sufoner® PI Sheet & Rod

Sufoner® PI polyimide is one of the most heat-resistant and refractory polymer plastics, and it has excellent mechanical and physical properties at high temperatures. Polyimide can be formulated with thermosets and thermoplastics. Polyimide has excellent electrical properties over a wide range of temperatures and humidities. The components of polyimide are also unaffected by dilute acids, aromatic and aliphatic hydrocarbons, esters, ethers, alcohols, freons, hydraulic oils and kerosene.

Types

Rods, Sheets, Tubes, Profiles

Put the goods in the shopping cart and make an inquiry, or click the icon in the lower right corner to make an inquiry directly.

Details about Sufoner® PI Sheet & Rod

Sufoner® PI Size
NameThickness/Diameter(mm)Width × Length (mm)
PI3300 Sheet1mm to 5mm150mmx210mm
150mm x 150mm
295mm x 295mm
PI Sheet5mm to 40mm600mmx1200mm

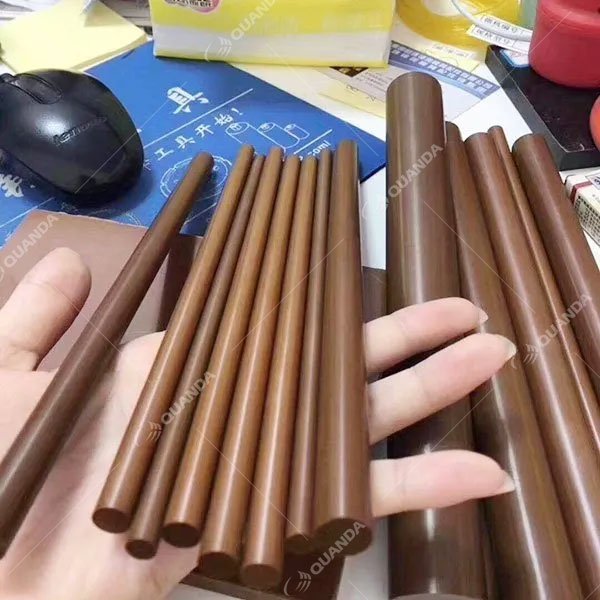

PI Rod4mm to 40mm305mm, 200mm ,1000mm



Sufoner® PI3300

Sufoner® PI3300 material is a composite of polyimide PI, PPS and special inorganic powder. It is better to retain the properties of polyimide PI material and to make good processing performance and dimensional stability of PPS material. Sufoner® PI3300 has excellent wear resistance, high surface finish, excellent electrical properties, chemical resistance and excellent isotropic mechanical properties, making it one of the most cost-effective materials for precision microporous (less than 0.1mm) materials.
Main features:
● The machining produces very few burrs and very small deformation
● High purity, high hardness but still maintain good toughness, while meeting customer cost requirements;

Sufoner® PI350

Sufoner® PI350 material is a combination of polyimide PI and 15% graphite, which improves the wear characteristics and heat resistance of the material. Suitable for bearings, thrust washers, bushings, seals, sliders and other wear applications.

Sufoner® PI350GP

Sufoner® PI350GP is a polyimide PI with 15% graphite and 10% PTFE filled for excellent wear resistance with the lowest coefficient of friction under all operating conditions. Typical applications include sliding or linear bearings as well as many of the wear and friction applications listed above

Note.Remarks
1. Other sizes, colors can be customized.
2. Length, width, diameter and thickness tolerances may vary by manufacturer.
3. Certain grades available in various colors.
