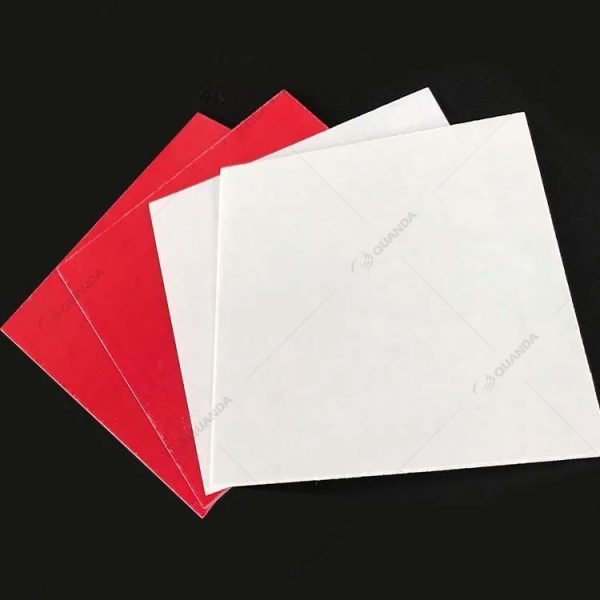

Ketonolic® GPO-3 UPGM203 Sheet
Ketonolic® GPO-3 Sheet also called UPGM203, it is a standard electric insulating materials with excellent arc resistance and superior heat resistance. This material is made of non-alkali glass fiber cutting board soaked into unsaturated polyester resin paste by heat pressing to rigid plate insulation material.
Name | Ketonolic® GPO-3 sheet |
---|---|

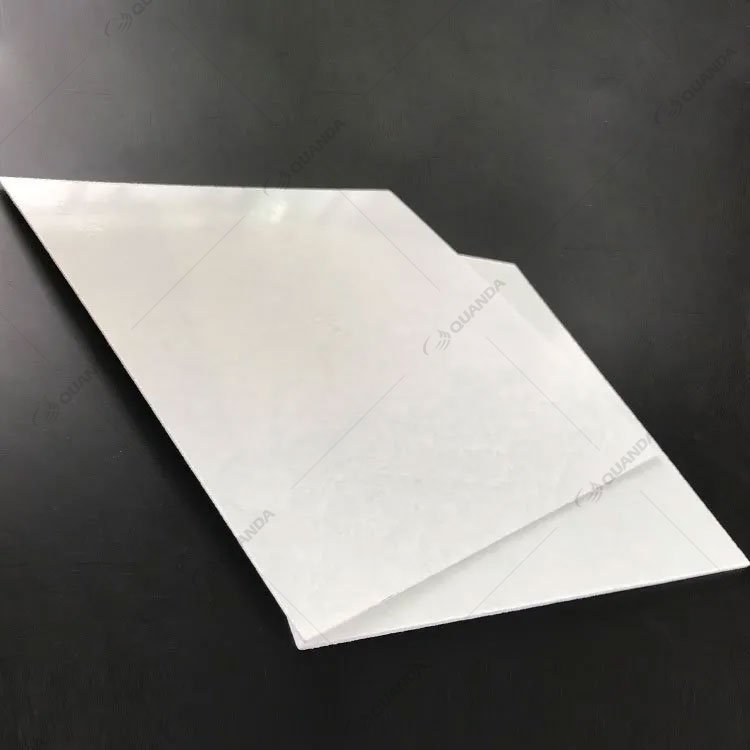

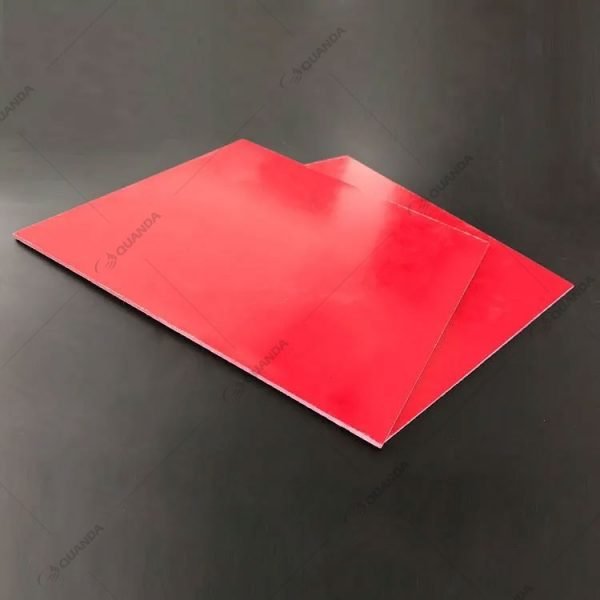

Colors | Red, White |
Types | Sheets |
Put the goods in the shopping cart and make an inquiry, or click the icon in the lower right corner to make an inquiry directly.
Details about Ketonolic® GPO-3 UPGM203 Sheet
Ketonolic® GPO-3 Sheet Size | ||||
Thickness(mm) | Width/Length(mm) | |||
2mm-40mm | 1230mm X 2100mm 1000mm X 1200mm1040mm X 1230mm |
Related products:
GPO-3 sheet technical data sheet
Remarks
1. Other sizes, colors can be customized.
2. Length, width, and thickness tolerances may vary by manufacturer
3. Certain grades available in various colors
The materials in stock with regular size are generally shipped within 2-5 business days. Can’t find the materials you need? Get a quote or consult more about Ketonolic® GPO-3 UPGM203 Sheet.
Characteristics
GPO-3 Sheet Strength
● With superior compressive strength, flexural strength, tensile strength, the material shows excellent mechanical properties even in different environments ( temperature, medium, humidity)under various roads (tensile, compression, bending, torsion, impact, alternating stress, etc)
● With superior casting resistance, cutting resistance, welding resistance, stamping resistance, heat treatment performance. With a special metal processing equipment can easily work out molding products.
● With stable dimension, the actual parameter value for thickness with very small variation, no need for further processing can accord with the requirements for thickness tolerance.
● With excellent stable mechanical properties even in the high humidity environment, can prevent the solid insulation material surface form a conductive path under the join action of electric field and electrolyte gradually.
● Resistant caused by high voltage arc metamorphism effectively.(more than 180s)
● With very high working temperature: when temperature over 240℃ will be deformation. The grade for heat resistance can be F or H.
● The materials for slow down, terminate or prevent flammability properties meet the requirements of American UL94 V-O; Not included halogen elements, with little smog in cause the material is lighted.
● With good hot mechanical properties, can keep an excellent mechanical and electrical properties even in the continuous rising temperature.
● With excellent Comparative Tracking index (CTI>600V)
Applications:
● GPO-3 in the application of molded case circuit breaker: phase partition, Arcing chamber, flash barrier etc.
● GPO-3 in the application of motors: Motor armature parts, activities cover plate, the stator slot wedge, washers, shims, carbon brush etc.
● Other applications: Suitable for all kinds of switch and the structural support of transformer, bus bar splint, bus duct insulation , the motor armature parts, signal board, electric furnace, electric furnace insulation etc.
Partially processed parts
Do you need machining service?
1. Professional engineering team quote for you
2. Professional machining machine customize for you
3. Prior Sample supply you to confirm quality
Data Sheet
