Ketonolic® FR4 Epoxy Fiber Glass Sheet & Rod

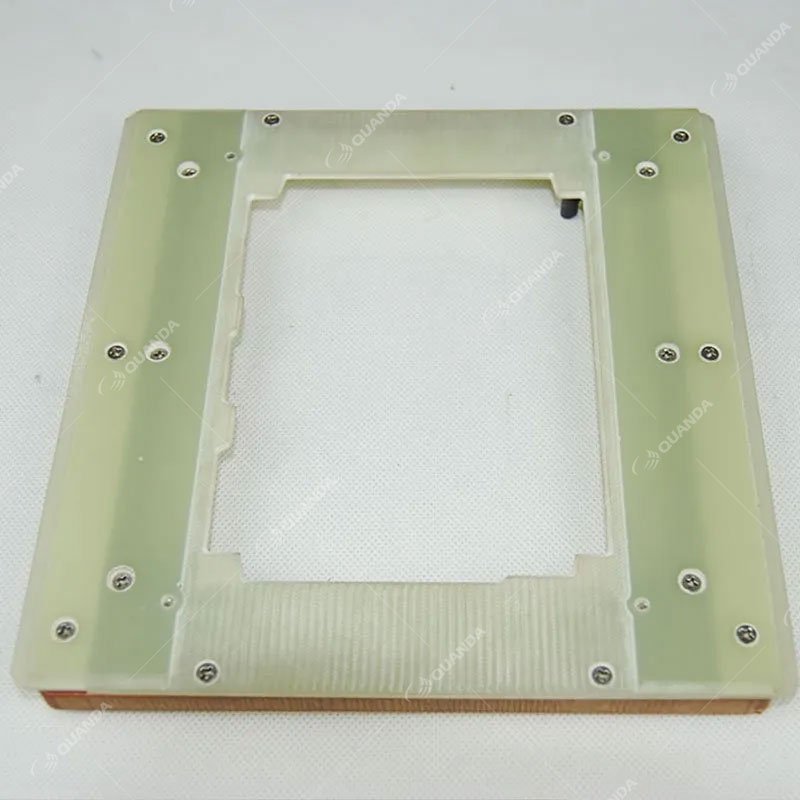

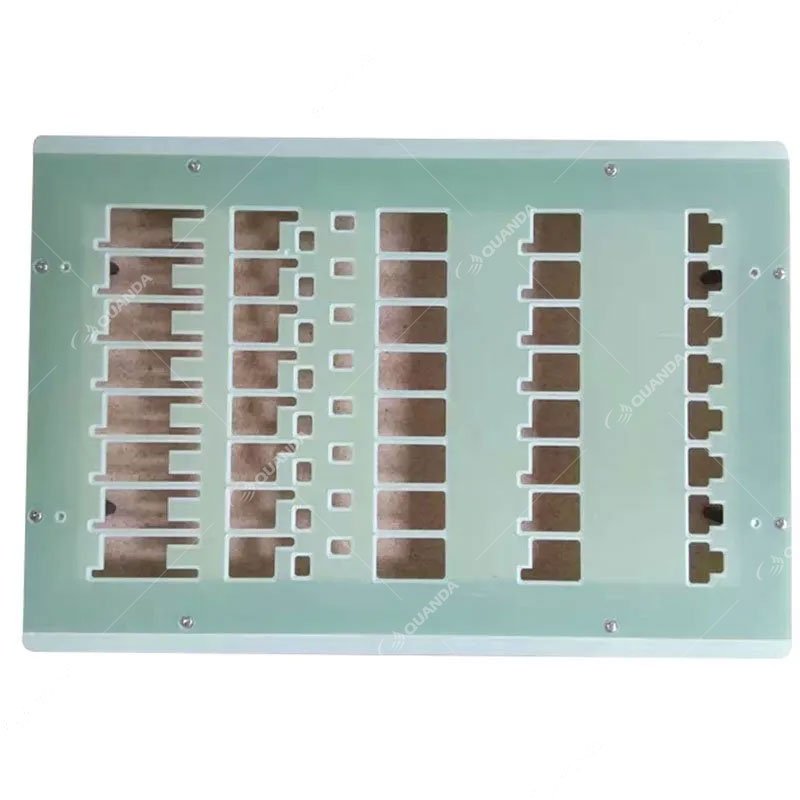

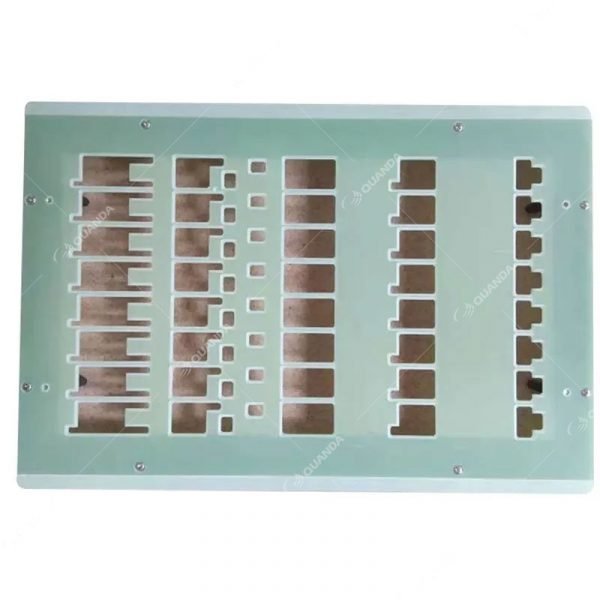

Our FR4 Epoxy Fiber Glass  laminated  Sheet is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy resin. It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical/electrical equipment, as well as used under damp environmental conditions and transformer oil.

Both sheets and rods available in stock for regular sizes, and meet the NEMA Standard.

Name

Ketonolic® FR4 Epoxy Fiber Glass Sheet and Rod

Colors

Light green,black

Types

Sheets, Rods

Put the goods in the shopping cart and make an inquiry, or click the icon in the lower right corner to make an inquiry directly.

Details about Ketonolic® FR4 Epoxy Fiber Glass Sheet & Rod

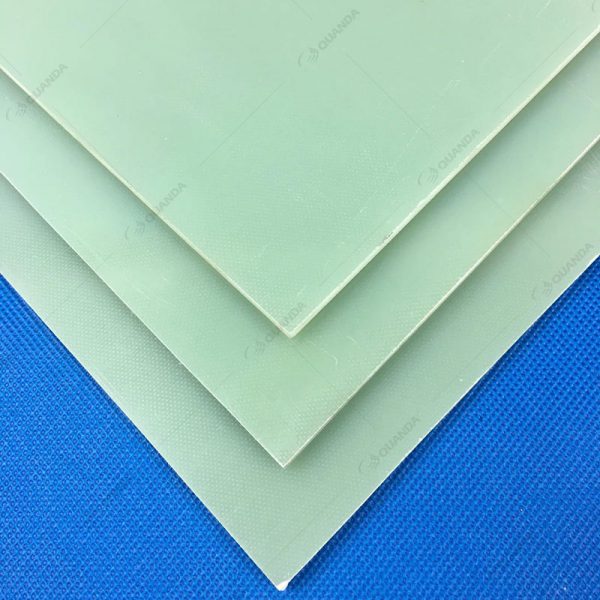

The surface of our laminated FR4 Epoxy fiber glass sheet is flat and smooth, no bubble, no wrinkle, no delamination or crackle.

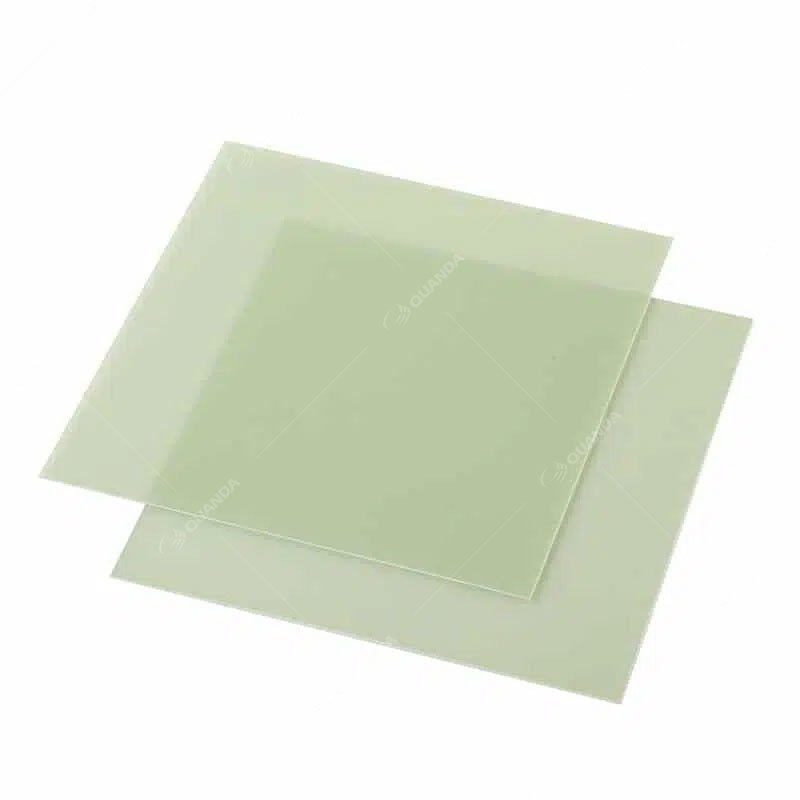

Ketonolic® FR4 sheets is flame retardant sheet , and can be made in light green and black color, and Glossy and matt surface can be customized.

US NEMA standard modelIEC standard modelGerman DIN standard modelBritish BS standard modelJapanese JIS standard modelUS MIL-I standardMaterial NameCharacteristics and uses
G-10EPGC201(3240)HGW2372EL-GEMGEEEpoxy glass cloth laminateHigh mechanical strength, insulation resistance and dielectric strength, low loss in dry and wet conditions
G-11EPGC203HGW2372.2EL-GEHGEBHeat resistance, performance is the same as G-10
FR-4EPGC202HGW2372.1EL-GEFGEE-FFlame resistant, performance similar to G-10
FR-5EPGC204HGW2372.4EL-GEHFGEB-FFlame retardant, heat resistant and similar to G-11



Ketonolic® FR4 Epoxy Fiber Glass Rod
Diameter (mm)Length(mm)
5mm–80mm1000mm
90mm–170mm1000mm

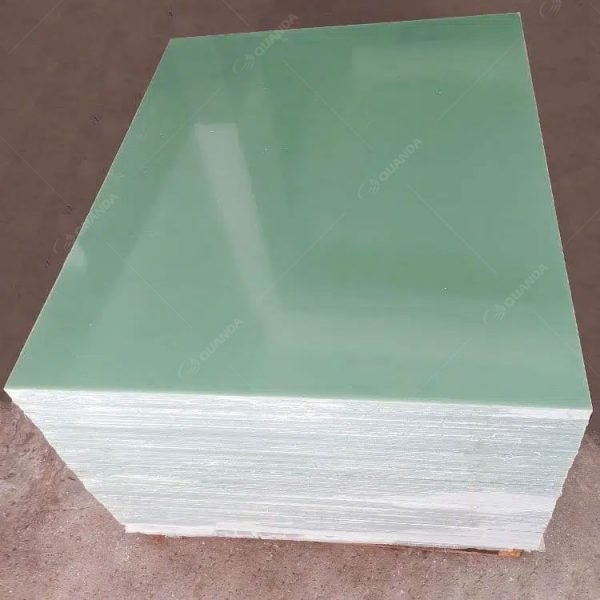

Ketonolic® FR4 Epoxy Fiber Glass Sheet
Thickness(mm)Width/Length(mm)
0.5–1.5mm1020mm×1220mm/1220x2440mm
2–2.5mm1020mm×1220mm/1220x2440mm
3–50mm1020mm×1220mm/1220x2440mm
60–80mm1020mm×1220mm/1220x2440mm



Remarks
1. Other sizes, colors can be customized.
2. Length, width, and thickness tolerances may vary by manufacturer

The materials in stock with regular size are generally shipped within 2-5 business days. Can’t find the materials you need? Get a quote or consult more about Ketonolic® FR4 Epoxy Fiber Glass Sheet & Rod.
