Ketonolic® 3640 Epoxy Fiber Glass Insulation Tube

This laminated product is formed through heat pressing after electric industry alkali glass cloth dips into the epoxy phenolic resin. It has high mechanic and dielectric performance, and applicable as insulation structural components for electromechanical/electrical equipment, as well as used under damp environmental conditions and transformer oil .

Name

Ketonolic® 3640 Epoxy Fiber Tube

Colors

Yellow

Types

Rods, Tubes

Put the goods in the shopping cart and make an inquiry, or click the icon in the lower right corner to make an inquiry directly.

Details about Ketonolic® 3640 Epoxy Fiber Glass Insulation Tube

Technical requirement for surface
The surface of laminated board should be flat and smooth, no bubble, no wrinkle, no delamination or crackle, and properly free from other defects such as scrape, impress, dirty spot and uneven color, but a little color patches is allowed.

Ketonolic® 3640 Epoxy Fiber Glass Rod
Diameter (mm)Length(mm)
20-220mm1000mm

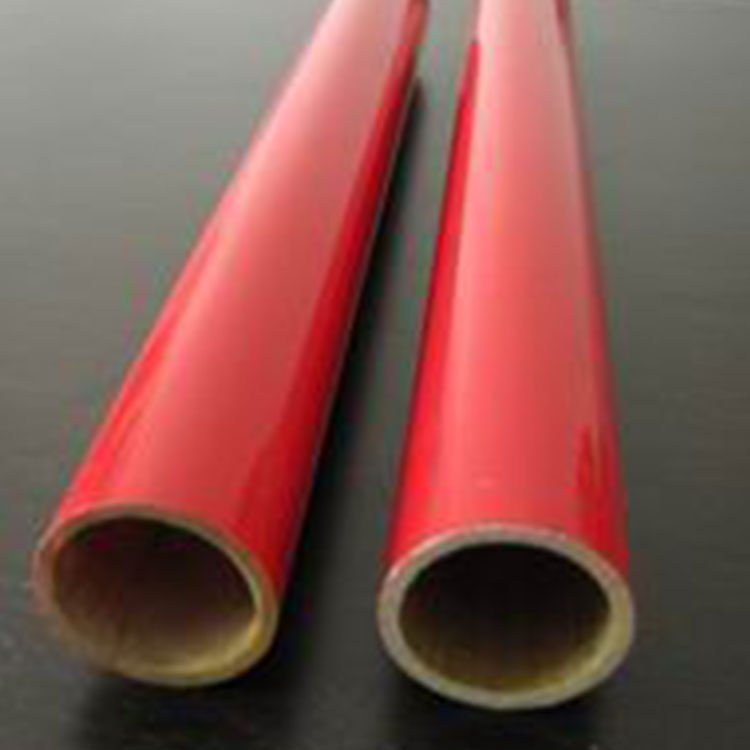

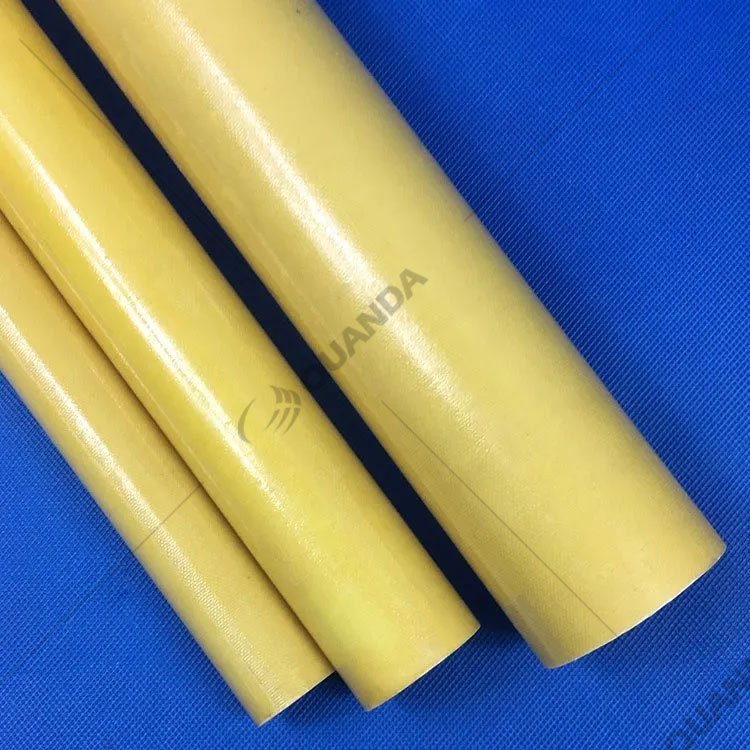

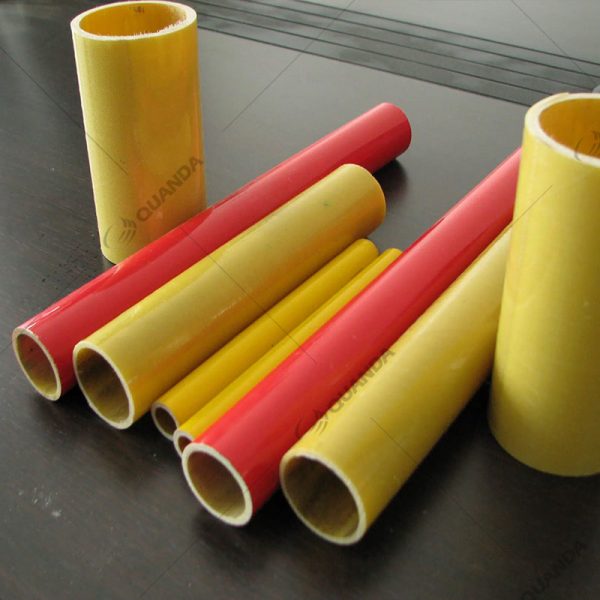

Ketonolic® 3640 Epoxy Fiber Glass Tube
Outer Diameter (mm)10mm—1400mm
Inner Diameter(mm)5mm—1200mm
Wall thickness (mm)1mm—50mm
Length (mm)450mm—1600mm



Remarks
1. Other sizes, colors can be customized.
2. Length, width, and thickness tolerances may vary by manufacturer
3. Certain grades available in various colors
