In the world of industrial metrology and precision testing, accuracy is measured in microns. While metal alloys like aluminum and stainless steel have traditionally been the standard for instrument housings and measurement gauge bases, advanced engineering plastics are rapidly becoming the preferred alternative. The primary challenge in designing structural enclosures for modern metrology tools is maintaining absolute dimensional stability under fluctuating temperatures, mechanical stresses, and chemical exposures.
Choosing a material with a low Coefficient of Linear Thermal Expansion (CLTE) and excellent moisture resistance ensures that calibration remains intact over extended operational cycles. At Quanda Plastic, we specialize in supplying and CNC machining high-grade semi-finished polymers tailored for non-standard precision components.
Why Dimensional Stability Matters in Metrology Housings
Dimensional stability refers to a plastic material’s ability to retain its original dimensions when subjected to temperature changes, humidity absorption, and physical loads. For gauge bases and multi-axis measurement systems, even a minor micro-deformation caused by moisture uptake or thermal expansion can lead to critical measurement errors.
Key properties required for these demanding applications include:
- Low Coefficient of Linear Thermal Expansion (CLTE): Minimizes movement during temperature variations.
- Zero Moisture Absorption: Prevents swelling in humid factory environments.
- High Flexural Modulus: Ensures structural rigidity under load.
- Excellent Machinability: Allows tight tolerances (+/- 0.01mm) during custom CNC milling.
Material Evaluation: Best Plastics for Gauge Bases & Enclosures
Depending on the working environment, precision requirements, and cost targets, different thermoplastics offer distinct mechanical profiles. Below are three industry-proven materials available from Quanda Plastic:
1. Sufoner® PPS (Polyphenylene Sulfide)
Sufoner® PPS represents the pinnacle of dimensional stability among engineering plastics. With near-zero water absorption and a remarkably low CLTE, it resists creeping even under elevated temperatures. It is ideal for high-end coordinate measuring machine (CMM) fixtures, sensor housings, and optical measurement blocks.
2. Lasenic® ABS+PC30% (Polycarbonate & ABS Alloy)
For large-scale structural enclosures and handheld gauge housings requiring impact toughness alongside dimensional control, Lasenic® ABS+PC30% Alloy is the optimal engineering choice. Combining the rigidity and low thermal shrinkage of PC with the processability of ABS, it delivers highly predictable dimensions post-machining.
3. Lasenic® PP (Polypropylene)
For cost-sensitive verification jigs, calibration blocks, or chemistry-exposed measurement equipment, Lasenic® PP provides excellent chemical resistance and zero moisture absorption. While it has a higher thermal expansion compared to PPS, it performs exceptionally well in laboratory-controlled environments with constant temperatures.
Technical Comparison for Precision Applications
To assist engineering design teams, the table below highlights the critical specifications governing dimensional stability and structural suitability:
| Material Trade Name | Moisture Absorption (%) | Dimensional Stability Rating | Key Advantage | Typical Measurement Application |
|---|---|---|---|---|
| Sufoner® PPS | < 0.05% | Exceptional (Extreme) | Near-zero creep, high rigidity | CMM sensor blocks, probe heads, calibration matrixes |
| Lasenic® ABS+PC30% | ~ 0.15% | High to Excellent | Impact resistance, low shrinkage | Handheld scanner bodies, meter enclosures, optical frames |
| Lasenic® PP | < 0.01% | Moderate | Chemical immunity, lightweight | Lab testing trays, corrosion-resistant gauge plates |

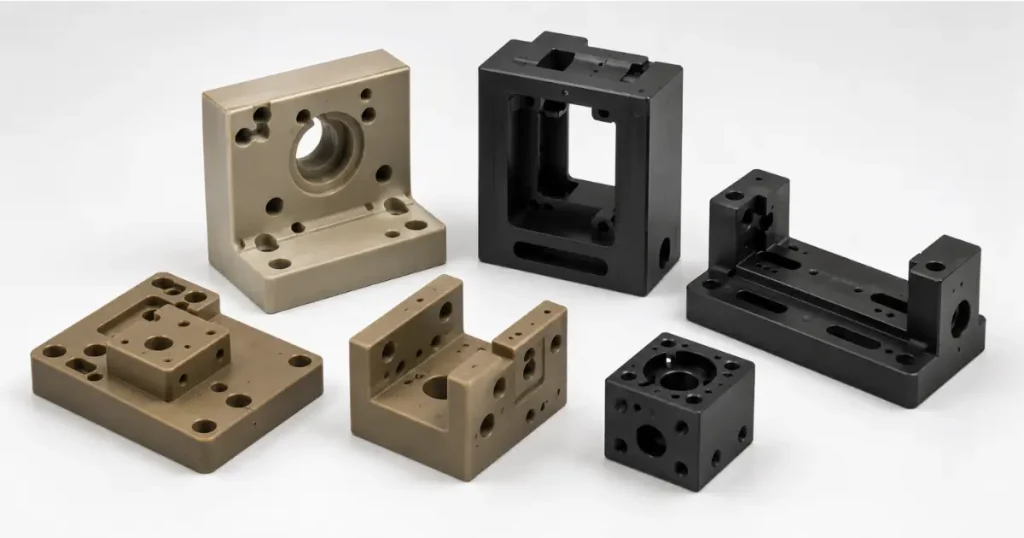

Custom Non-Standard CNC Machining Capabilities
Precision materials require precision processing. Quanda Plastic doesn’t just supply high-stability plastic sheets and rods; we deliver custom, multi-axis CNC machined non-standard parts based strictly on your CAD drawings. Our rigorous stress-relieving annealing processes ensure that machined components retain their tight tolerances throughout their service life without warping.
Whether you need a single prototype gauge base or a high-volume run of custom instrument housings, our engineering team ensures optimized material selection and geometric accuracy.
Ready to select the right material for your next metrology project? Contact Quanda Plastic Engineers Today for expert consultation and a fast quotation.
Frequently Asked Questions (FAQ)
Q1: Why is Sufoner® PPS preferred over metals for measurement gauge bases?
A1: Sufoner® PPS provides excellent weight savings, corrosion resistance, and high electrical insulation while matching or exceeding the dimensional stability of certain metals under thermal load, avoiding micro-deformations caused by magnetic or electrical interference.
Q2: How does moisture absorption affect plastic measurement housings?
A2: Polymers with high moisture absorption swell when humidity changes, leading to volumetric distortion. Materials like Sufoner® PPS and Lasenic® PP have near-zero moisture uptake, ensuring structural dimensions remain static regardless of factory humidity.
Q3: Can Quanda Plastic machine non-standard bases with tight tolerances?
A3: Yes. We specialized in custom OEM/ODM non-standard engineering plastic components, achieving precision tolerances up to +/-0.01mm using state-of-the-art CNC milling and turning centers combined with post-machining annealing techniques.
